DESCRIPTION

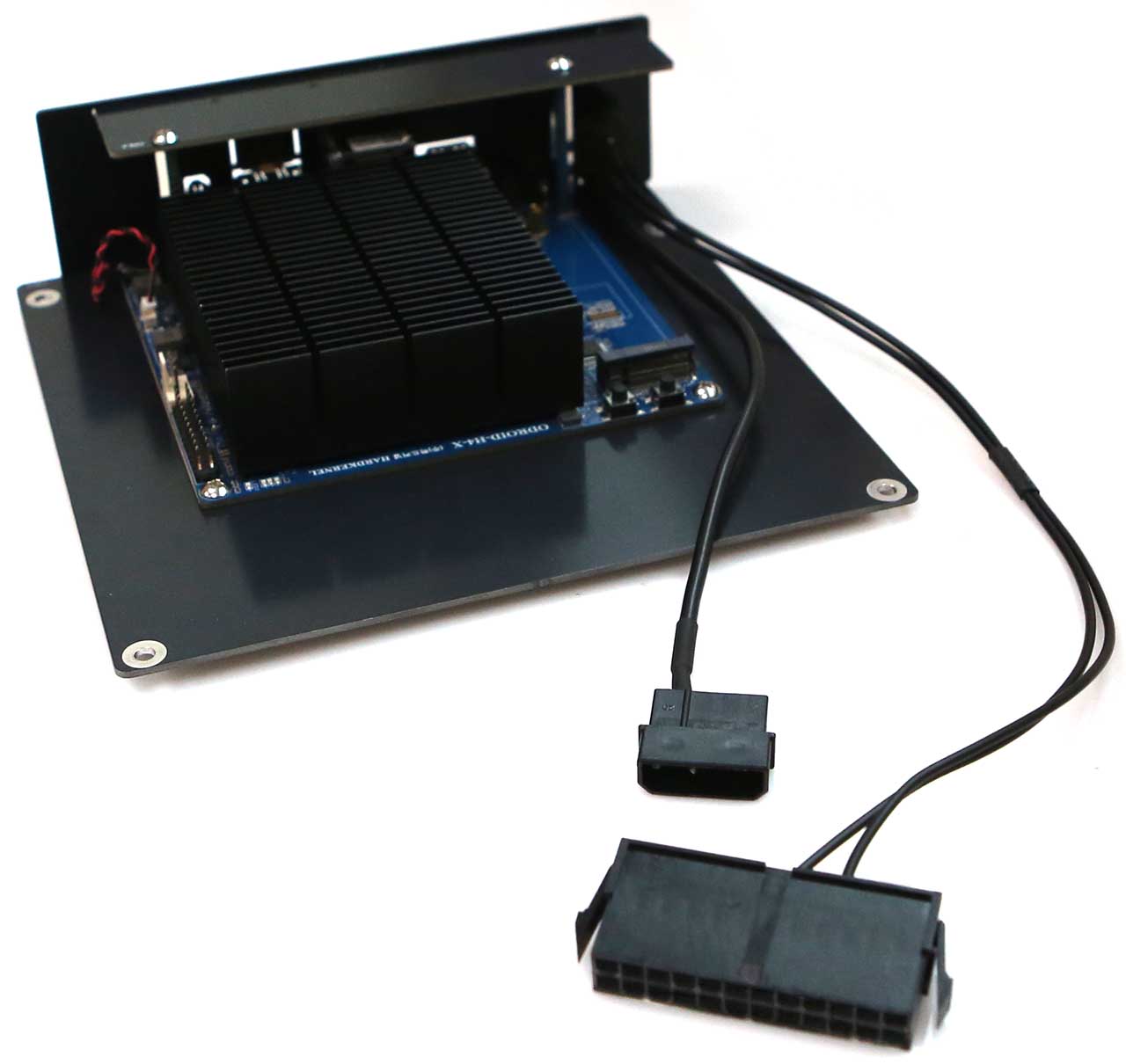

Designed for maximum versatility, this specialized adapter kit allows you to seamlessly integrate the H5 board into a standard Mini-ITX desktop PC or DIY-NAS chassis.

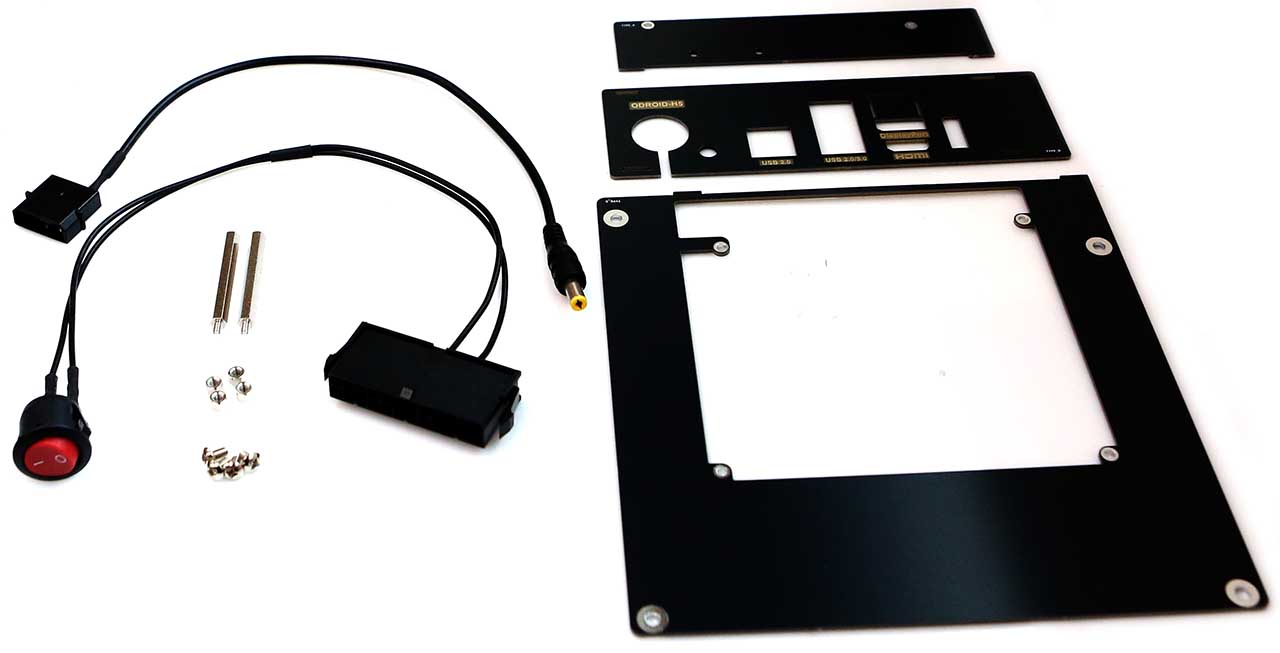

The comprehensive kit includes:

• A precision-engineered base mounting panel.
• The customized I/O shield-style rear panel and integrated support bracket.
• All required mounting hardware, including standoffs and screws.
• A 24-pin ATX PSU starter jumper bridge with a dedicated red on/off switch cable for manual power control.
• A MOLEX-to-DC Plug adapter, enabling you to power the H5 series using any standard ATX or SFF power supply.

Note: The ATX PSU delivers the necessary 12V rail directly to the H5 board.

Items in the package.

• 3.0×6 (NI) TM Bolt.
• 3x5x40 BM Support
• 3x5x4 FM Support
• ATX PSU Power Supply Starter On/Off  Switch
• DC 5.5×2.1mm Male Converter Adapter Power Supply Cable

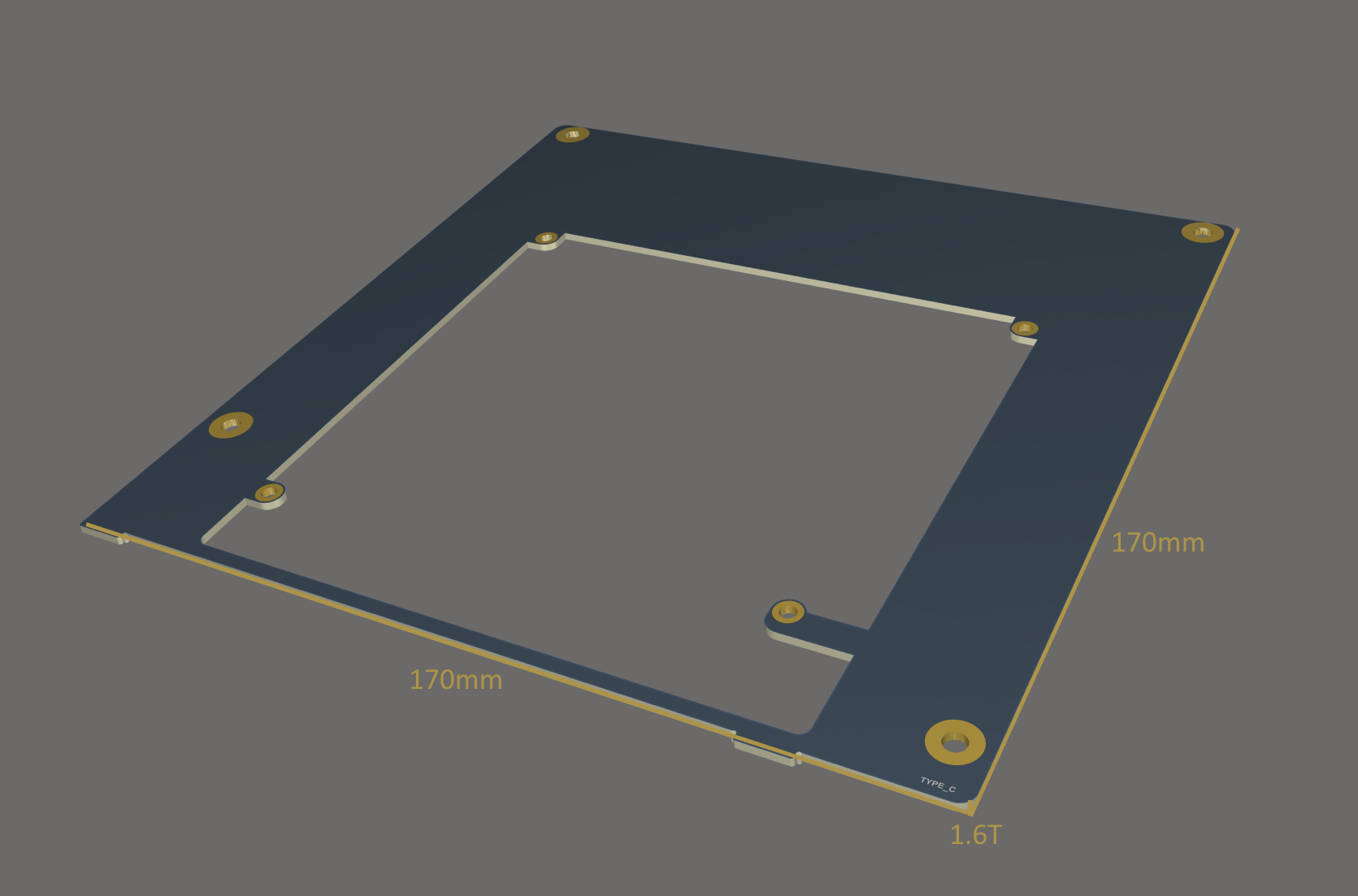

• Dimensions :  170 x 170 x 1.6 mm

https://youtu.be/jqyZ4aCobxY?si=HxwbvN9nK96_21hL

Drawings in DXF format
